M6 RIGIFIX ANCHOR DRILL SIZE: 12mm MIN HOLE DEPTH: 100mm MAX PL/BOARD GAP: 20mm FIXTURE THICKNESS:10mm

Product Code: RRFM06

Specially designed for the fixing of heavy items to dry lined or fibre board walls, the Rigifix® Anchor transfers load away from the plasterboard directly into the masonry.

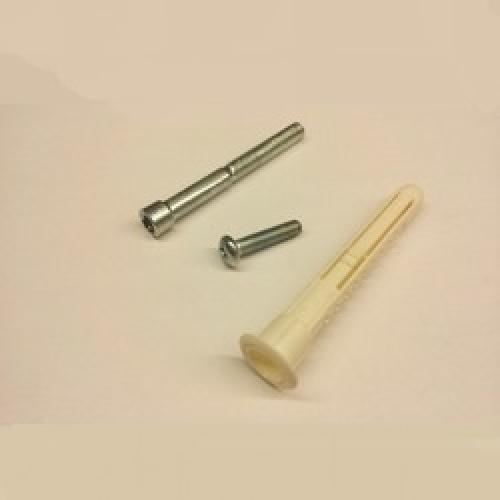

• Plastic expansion plug, zinc plated steel threaded sleeve, zinc plated screw
• 12mm hole in board and wall
• 100mm minimum hole depth
• 20mm maximum Plasterboard gap
• 10mm maximum fixture thickness
• 6mm A/F hex wrench or hex bit required to secure sleeve into plug
